برند محصول
|
بی کوایت (be quiet)
|
|
مدل محصول
|
DARK-POWER-PRO-10-BN601
|
|
نوع
|
ATX 12V, ATX 12V v2.3, EPS 12V, EPS 12V v2.92
|
|
ماژولار
|
بلی
|
|
بهره وری انرژی
|
80 Plus Gold
|
|
بیشترین توان
|
650W
|
|
at_peak-power
|
750W
|
|
at_power-rating
|
650W
|
|

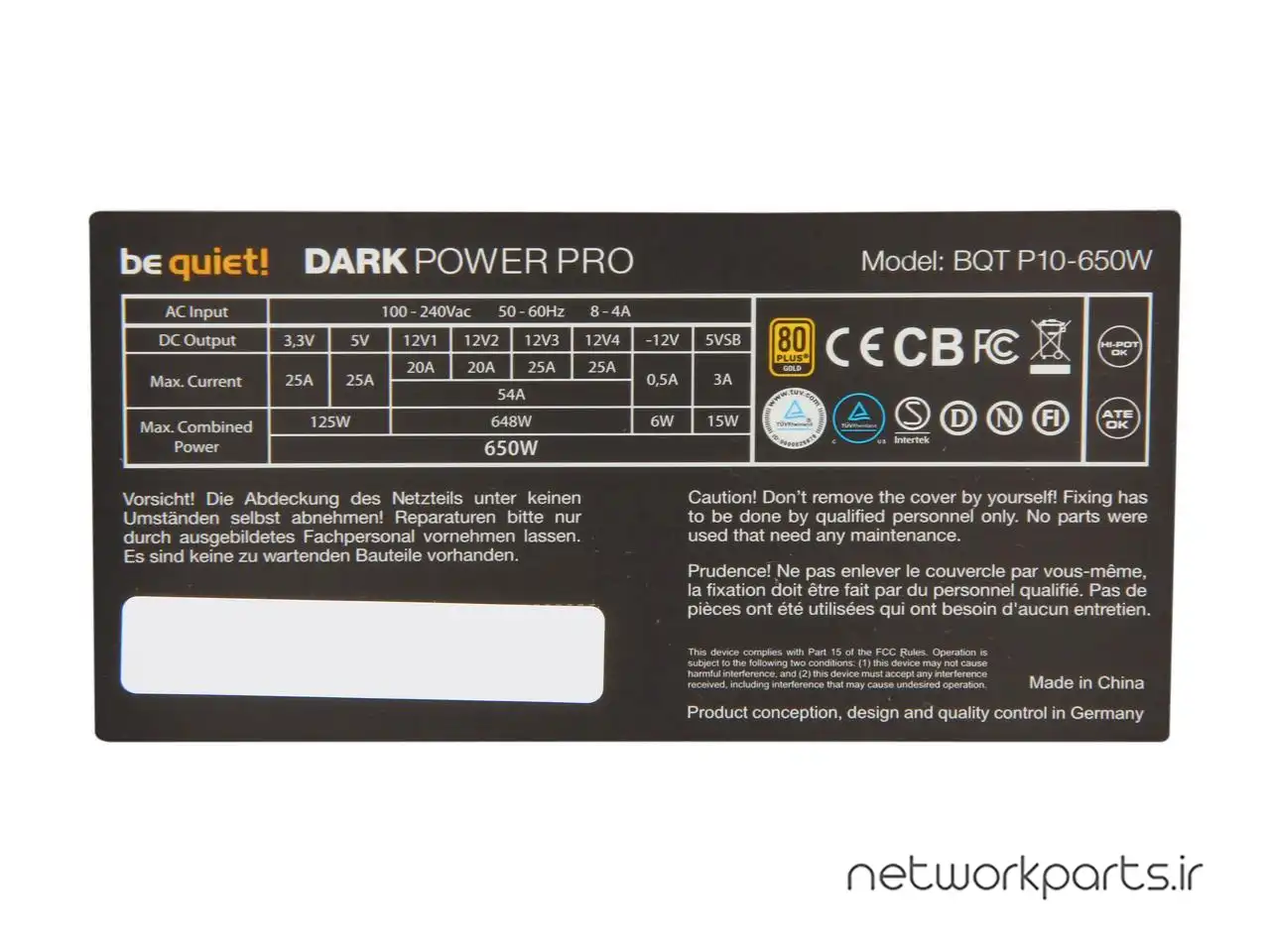

خروجی
|
[email protected], +12V1@25A, +3.3V@25A, +5V@25A, [email protected]
|
|
ولتاژ ورودی
|
100 – 240V, 90 – 264V
|
|
جریان ورودی
|
8-4A, 8A @ 115V, 4A @ 230V
|
|
at_frequency-range
|
47/63 Hz
|
|
ریل 12V
|
4
|
|
at_-12v-max-current
|
0.5A
|
|
at_-12v1-max-current
|
20A
|
|
at_-12v2-max-current
|
20A
|
|
at_-12v3-max-current
|
25A
|
|
at_-12v4-max-current
|
25A
|
|
at_-33v-max-current
|
25A
|
|
at_-5v-max-current
|
25A
|
|
at_-5vsb-max-current
|
3A
|
|
اتصالات
|
1 x 20+4pin Main Connector, 1 x 6pin PCI-E, 1 x 8pin CPU, 1 x Floppy, 1 x Mainboard connector (like 4 pin drive connector), 2 x 4+4pin CPU, 4 x 6+2pin PCI-E, 4 x External fan connectors, 7 x 4pin IDE, 9 x SATA
|
|

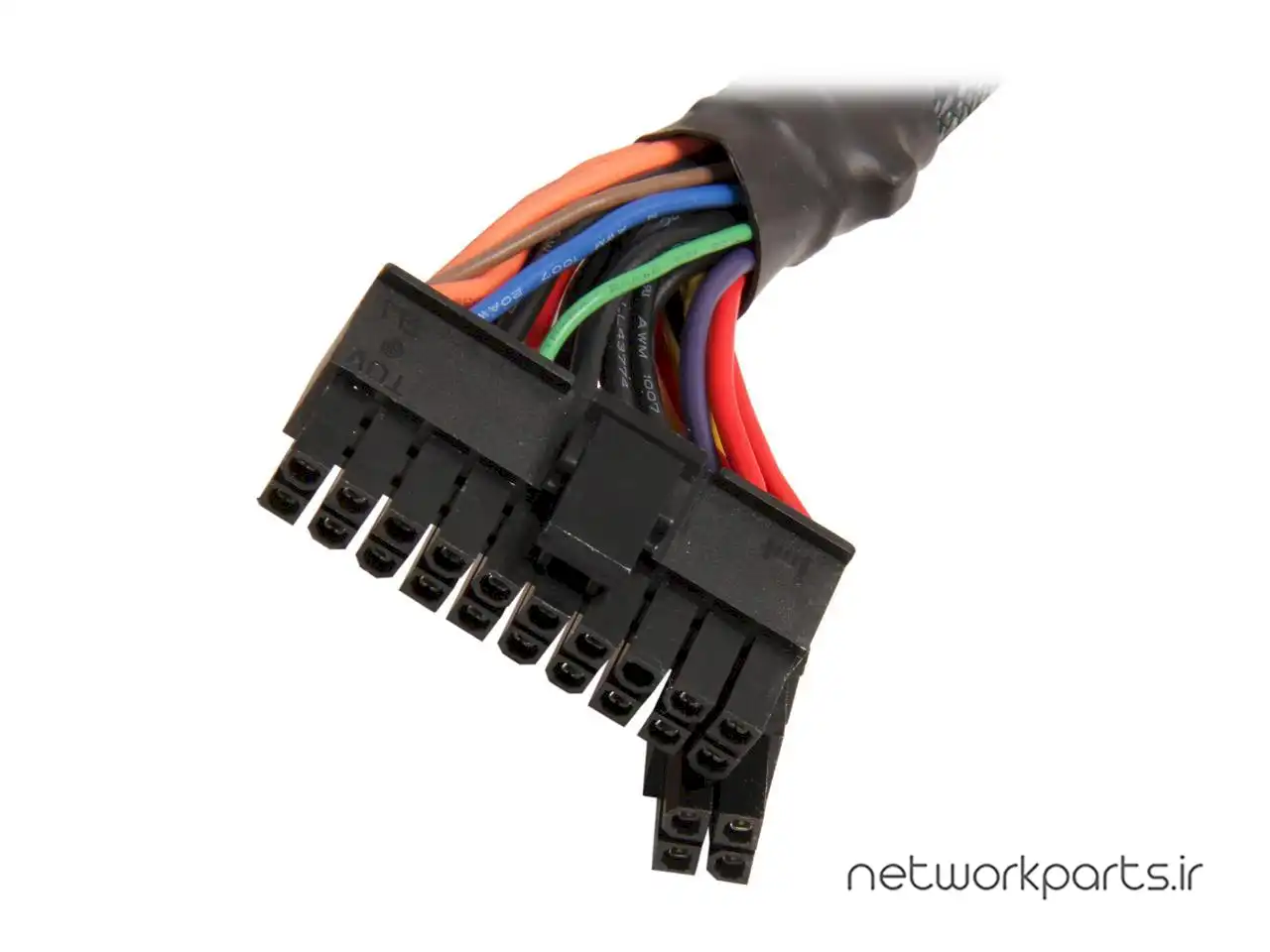

اتصال اصلی
|
20+4 Pin, 20+4Pin
|
|
at_12v-power-connector
|
1X 4+4 Pin ATX/EPS 12V, 1X 8 Pin EPS 12V
|
|
اتصال برق SATA
|
9
|
|
اتصال PCI-Express
|
1X 6-Pin, 4X 6+2-Pin, 4X 6+2-Pin
|
|
at_floppy-connector
|
1
|
|
at_peripheral-connector
|
7
|
|
CrossFire
|
Certified, CrossFire Ready
|
|
at_haswell-support
|
بلی
|
|
SLI
|
Certified, SLI Certified
|
|
at_fans
|
1
|
|
at_fans-total-quantity
|
1
|
|

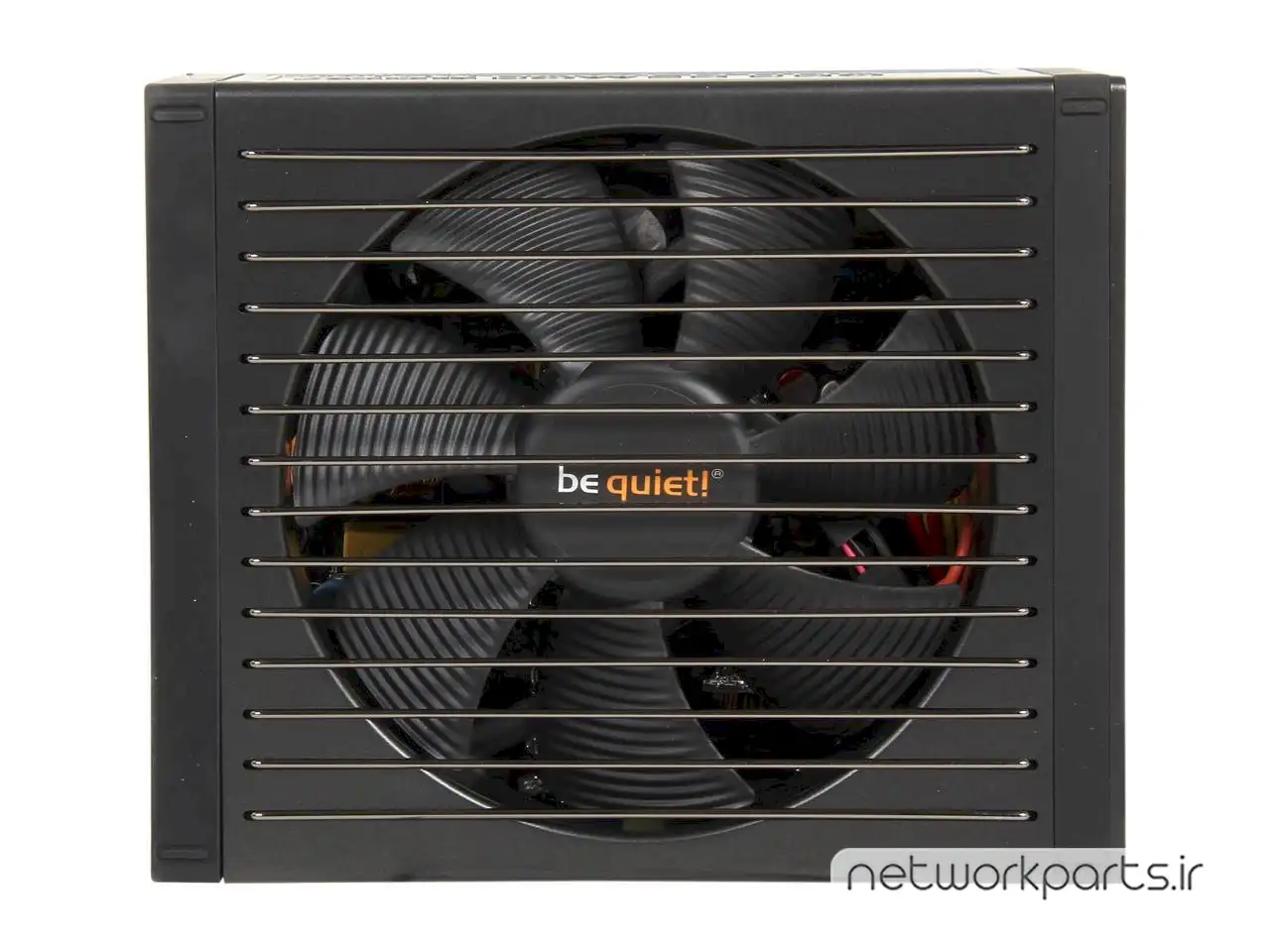

at_top-fans-size
|
135 میلیمتر
|
|
at_top-fans-noise-level
|
25db
|
|
at_over-power-protection
|
بلی
|
|
محافظت در مقابل ولتاژ بیش از حد مجاز
|
بلی
|
|
at_under-voltage-protectio
|
بلی
|
|
at_over-current-protection
|
بلی
|
|
at_short-circuit-protectio
|
بلی
|
|
بهره وری
|
0.9
|
|
at_hold-up-time
|
17ms min., 21ms
|
|
میانگین زمان بین خرابی‌ها (MTBF)
|
100000 ساعت
|
|
at_pfc
|
فعال
|
|
at_power-good-signal
|
100-500ms
|
|
at_over-temperature-protec
|
بلی
|
|
ویژگی ها
|
650 Watts of continuous power provide deep power reserves for demanding computing applications, 80Plus Gold certification with higher efficiency 87%~90% at 20%~100% loading, Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases, German product conception, design and quality control, NVidia SLI and AMD CrossfireX multi-GPU certifications allow you to buildMulti-GPU systems with utter confidence, Overclocking key allows switchover between quadruple independent +12V rail mode and high-performance single-rail operation, SilentWings fan features airflow-optimized fan blades, fluid dynamic bearing with copper core and high quality IC motor controller for the quietest possible operation, Virtually silent operation achieved through a broad array of meticulous optimizations, including use of be quiet!'s custom-designed 135mm SilentWings fan
|
|
تاییدیه ها
|
CB, CE, cTUVus, Demko (D), FCC, Fimko (FI), Nemko (N), Semko (S), TUV
|
|
ابعاد
|
180 x 150 x 86
|
|
وزن
|
7.998 پوند
|
