برند محصول
|
ای وی جی ای (EVGA)
|
|
سری محصول
|
SUPERNOVA
|
|
مدل محصول
|
220-GT-1000-X1
|
|
نوع
|
ATX 12V, EPS 12V
|
|
ماژولار
|
ماژولار کامل
|
|
بهره وری انرژی
|
80 Plus Gold
|
|
بیشترین توان
|
1000W
|
|
خروجی
|

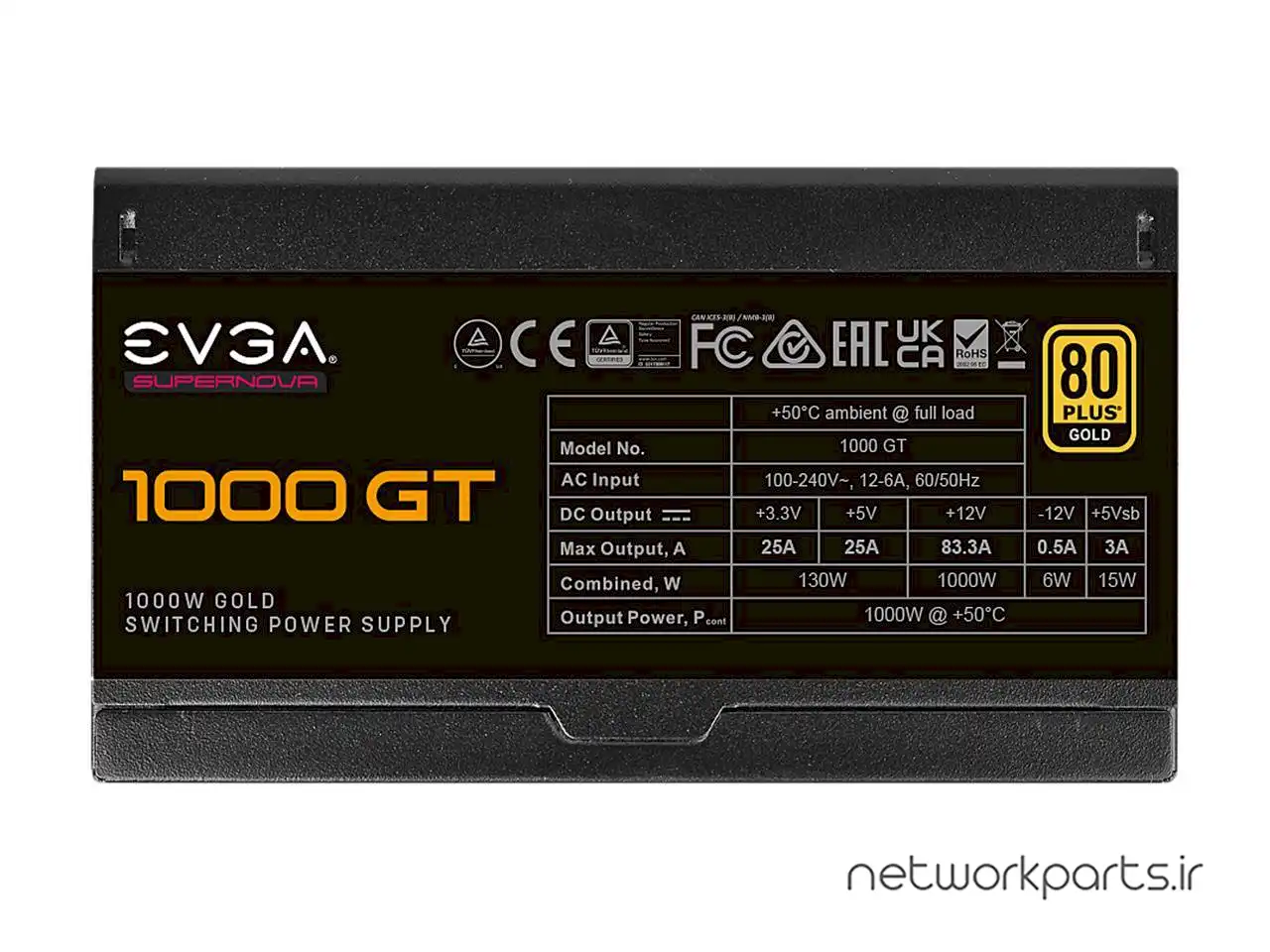

[email protected], +3.3V@25A, +5V@25A, +5VSB@3A, 12V@83A
|
|
ولتاژ ورودی
|
100 – 240V
|
|
جریان ورودی
|
12 – 6 A
|
|
at_frequency-range
|
50/60 Hz
|
|
ریل 12V
|
1
|
|
اتصالات
|

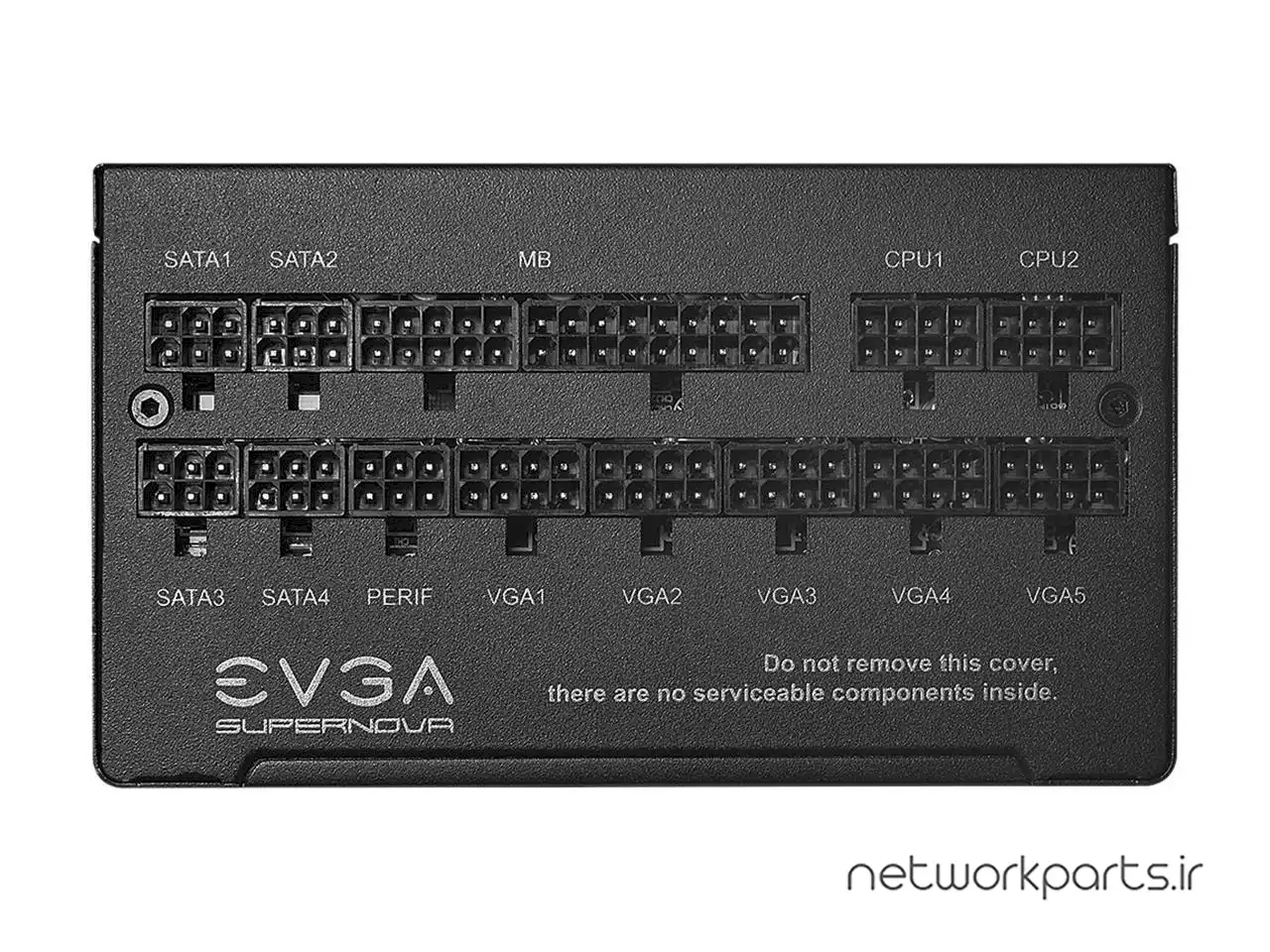

1 x 24 pin ATX, 1 x Floppy, 12 x SATA, 2 x 8 Pin EPS (4+4), 3 x Four-Pin Peripheral, 8 x 8pin PCIe (6+2)
|
|
اتصال اصلی
|
24Pin
|
|
اتصال برق SATA
|
12
|
|
اتصال PCI-Express
|
8X 6+2-Pin
|
|
CrossFire
|
خیر
|
|
at_haswell-support
|
بلی
|
|
SLI
|
خیر
|
|
at_fans
|
1
|
|
اندازه فن
|
135 میلیمتر
|
|
محافظت در مقابل ولتاژ بیش از حد مجاز
|
بلی
|
|
at_cable-spec
|

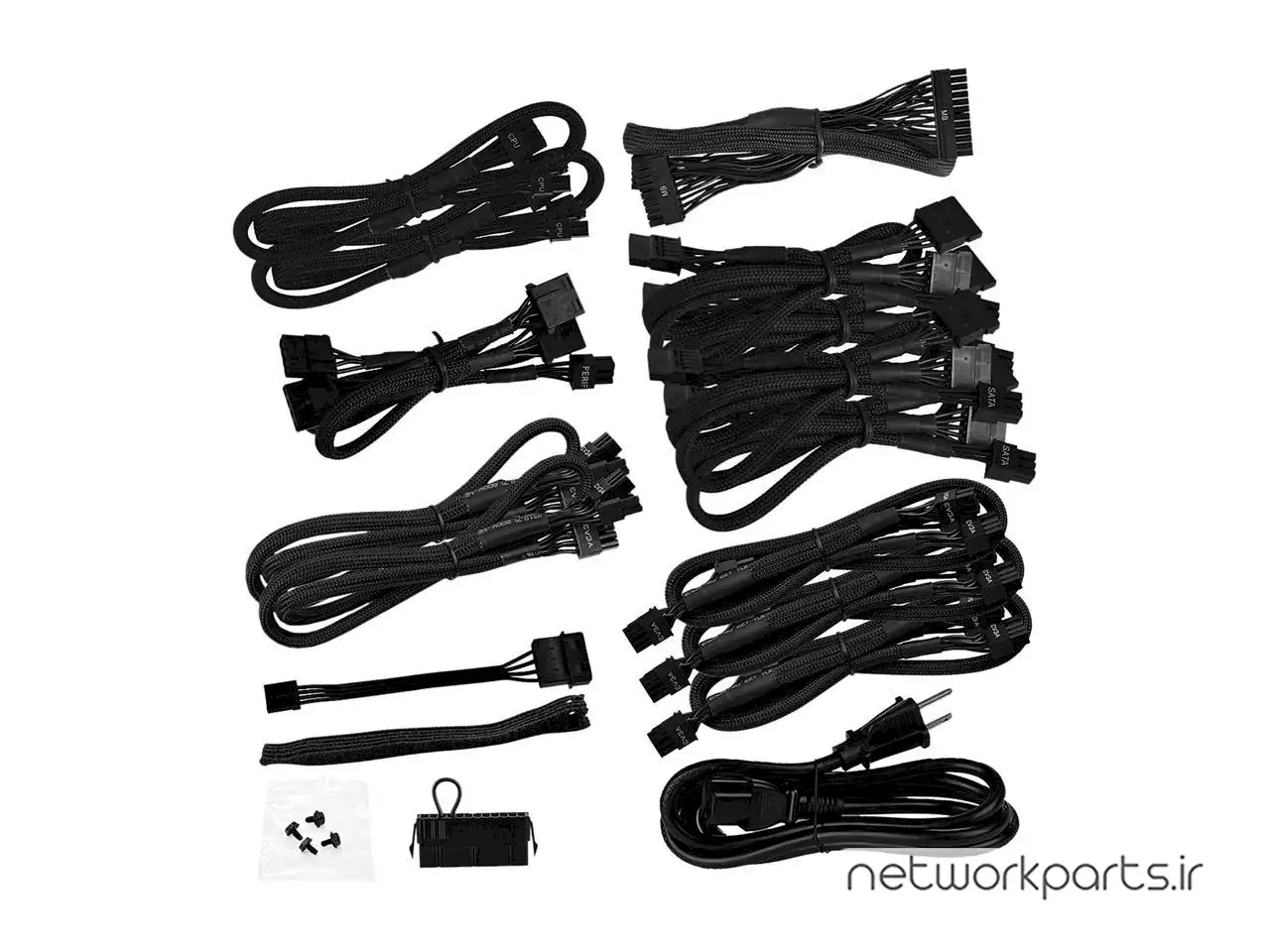

AC Power: 1 x 1500mm (m), ATX Cable: 1 x 600mm (m), EPS Cable: 2 x 700mm (m), Floppy Adapter: 1 x Molex to FDD Adapter, Four-Pin Peripheral Cable: 1 x 550mm, 650mm, 750mm (m), Molex to FDD: 1 x, PCIe Cable: 2 x 700mm (m), 3 x 700mm, 850mm (m), SATA Cable: 4 x 550mm, 650mm, 750mm (m)
|
|
بهره وری
|
0.9
|
|
میانگین زمان بین خرابی‌ها (MTBF)
|
100000 ساعت
|
|
at_pfc
|
فعال
|
|
ویژگی ها
|
100% Japanese Capacitors ensure long-term reliability, 80 PLUS Gold Certification, EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads, Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan, Fully Modular to reduce clutter and improve airflow, Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual
|
|
تاییدیه ها
|
CB, CE, Compliance with ErP Lot 3 2014 Requirement, cTUVus, FCC, RCM, RoHS, TUV, WEEE
|
|
ابعاد
|

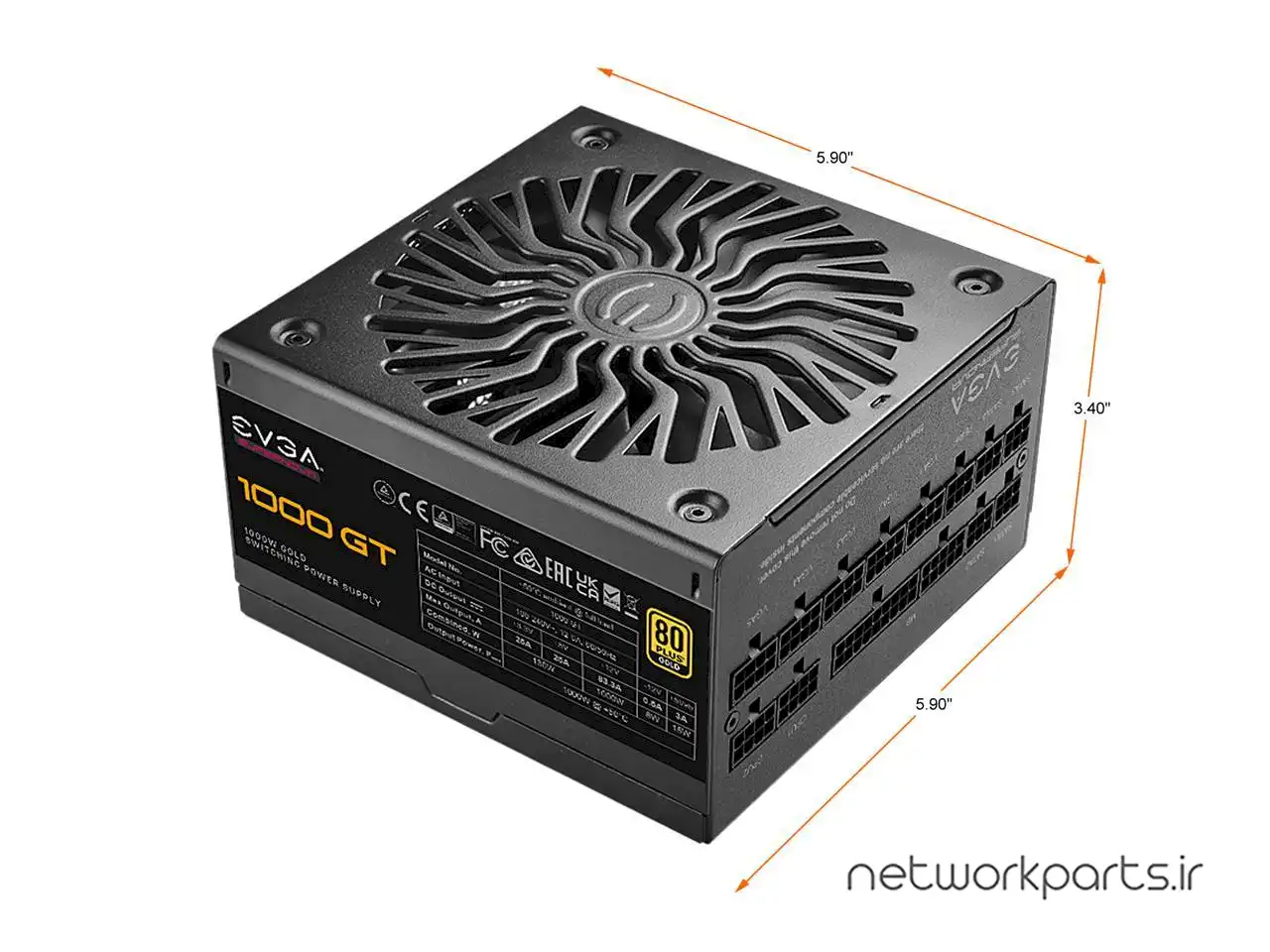

3.40" x 5.90" x 5.90"
|
|
بیشرین طول منبع تغذیه
|
150 mm
|
|
وزن
|
9.00 پوند
|
